Exploitee.rs Low Voltage e-MMC Adapter

From Exploitee.rs
Jump to navigationJump to search

"Although the information we release has been verified and shown to work to the best our knowledge, we cant be held accountable for bricked devices or roots gone wrong." This page is dedicated to the Exploitee.rs Low Voltage eMMC Adapter.

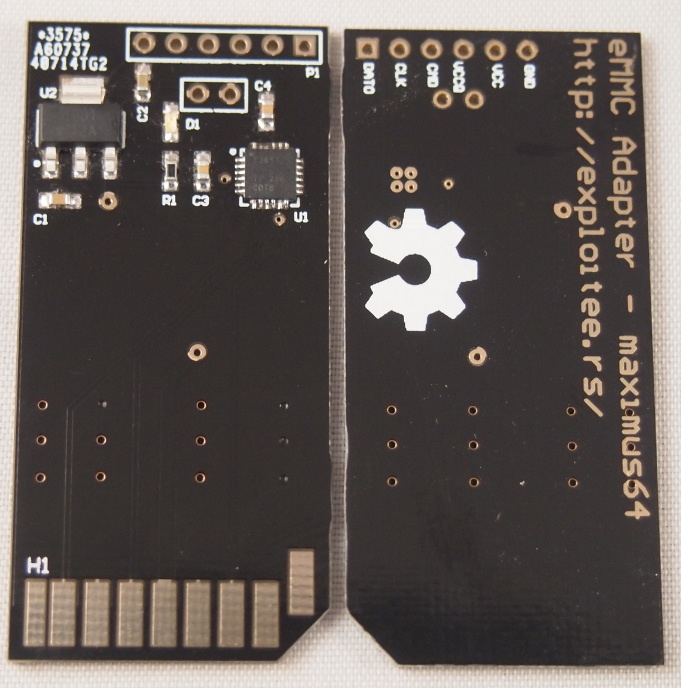

GTVHacker Low Voltage eMMC Adapter Top & Bottom (v1).jpg

About

The Exploitee.rs Low Voltage eMMC Adapter was created by maximus64 and is intended to interface a low voltage e-MMC storage device with a typical SD/MMC Adapter. The adapter is based on the TI TXS02612 which performs logic level translation from an input of 1.1v to 3.6v to an output level of the attached device. The TI TXS02612 intended usage is to convert the logic level of a SDIO peripheral to an attached mobile Application Process. However, in our adapter, the use of this IC allong with the SD Card form factor allows us to modify the input logic level of an attached e-MMC storage device to that of an MMC reader.

Usage

For information on the use of our low voltage e-MMC adapter, visit GTVHacker Low Voltage e-MMC Adapter Usage (Coming Soon)

Ordering

You can order PCBs, BoM and fully assembled boards on the Exploitee.rs Online Store

Board Pictures

  • GTVHacker Low Voltage eMMC Adapter Top & Bottom (v1).jpg
  • GTVHacker Low Voltage eMMC Adapter PCB Top & Bottom (v1).jpg

BoM Information

You can find BoM Information for the Exploitee.rs Low Voltage e-MMC Adapter (V1) below.

Code Index Quantity Manufacture Part # Location Description
1 1 LM1117MPX-1.8/NOPB U2 LDO Voltage Regulators800MA LDO LINEAR REG
2 1 TXS02612RTWR U1 IC SDIO PORT EXPANDER 24WQFN
3 1 ERJ-3EKF1000V R1 Thick Film Resistors - SMD0603 100ohms 1% Tol
4 2 GRM188R61E105KA12D C1, C2 Multilayer Ceramic Capacitors MLCC - SMD/SMT0603 1uF 25volts X5R 10%
5 2 06035C104KAT2A C3, C4 Multilayer Ceramic Capacitors MLCC - SMD/SMT50volts 0.1uF 10% X7R
6 1 VLMB1300-GS08 D1 Standard LEDs - SMDBlue Clear Non-Diff
  • Color codes are for BoM orders and only for parts that are not labeled or easily distinguishable.

Previous Revisions

Below are the previous revisions of the eMMC Adapter.

Licensing

The Exploitee.rs Low Voltage e-MMC Adapter was created under the OHL license. More information on its use can be found Here
